I don't use RTseven lite. The original sources may use it. But I don't think so.

I should dowload latest untouched MSDN win7 dvds and do everything myself :type: :unsure:

regards

First, I think you can use the Autounattend.xml file I gave you, and just adapt some values to your needs...

With my modified Windows 7 AIO I have no trouble!!!

Link to comment
Share on other sites

@hornet512

Please, try first the Autounattend.xml file I attached for you!

Just needed to changes some values to your needs!

Example:


<SetupUILanguage>
<UILanguage>fr-FR</UILanguage>
</SetupUILanguage>
<InputLocale>100c:0000100c</InputLocale>
<SystemLocale>fr-CH</SystemLocale>
<UILanguage>fr-FR</UILanguage>
<UserLocale>fr-CH</UserLocale>

Because inside your own Autounattend.xml file many values were missing and/or not correct:

missing:


<DiskConfiguration>
<WillShowUI>Always</WillShowUI>
</DiskConfiguration>

<DynamicUpdate>
<Enable>false</Enable>
<WillShowUI>OnError</WillShowUI>
</DynamicUpdate>
<ImageInstall>
<OSImage>
<WillShowUI>Always</WillShowUI>
</OSImage>
</ImageInstall>

Edited by myselfidem
Link to comment
Share on other sites

@myselfidem

I have just noticed your attachment, downloaded and tested immediately.

changed your local codes


<SetupUILanguage>
<UILanguage>fr-FR</UILanguage>
</SetupUILanguage>
<InputLocale>100c:0000100c</InputLocale>
<SystemLocale>fr-CH</SystemLocale>
<UILanguage>fr-FR</UILanguage>
<UserLocale>fr-CH</UserLocale>

with my local codes


<SetupUILanguage>
<UILanguage>en-us</UILanguage>
</SetupUILanguage>
<InputLocale>0x0000041f</InputLocale>
<SystemLocale>tr-tr</SystemLocale>
<UILanguage>en-us</UILanguage>
<UserLocale>tr-tr</UserLocale>

I tested x86 and amd64 images. All work fine :)

I have no errors with amd64 silent installation!

There is no problem.

Thank you for your support and patience.

Regards.

Link to comment
Share on other sites

Thanks hornet512 :)

Here is as attachment the first example I gave above.

The silent installation will be fully unattended, exept the dialog boxes for: Disk Configuration and OS to Install.

You can adapt to your needs. Rename the file as: Autounattend.xml

Use WSIM to see if errors when you add values...but don't validate the file.

Cheers

Autounattend_AIO.xml

Edited by myselfidem
Link to comment
Share on other sites

I am supposed to be involved in this topic? lol :P

Yes Legolash2o

Maybe it's possible to generate an Autounattend.xml file for Windows 7 AIO (x86 and amd64) with W7T ?!

The same lines are duplicated (one for 32-bit version and the second for 64-bit version).

But, I remember I have read somewhere that is not possible or too dificult.

Thanks

Edited by myselfidem
Link to comment
Share on other sites

Here is as attachment the first example I gave above.

The silent installation will be fully unattended, exept the dialog boxes for: Disk Configuration and OS to Install.

I need that kind of AIO silent installation, thank you.

I prefer seaside picnic with family to sitting in front of the computer today :)

It's a lovely day today with calm and sunny weather LOL

Goodbye for now.

Link to comment
Share on other sites

Theres should be an option to report it as a false positive, try that :)

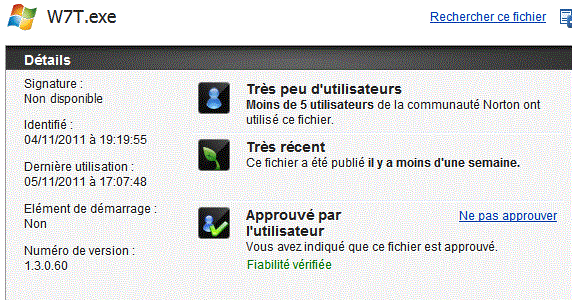

Check the file with Norton on my computer and I've selected approved by the user...and W7T.exe works fine now! :P

About xml creator, could you please change the order of the passes, like it is recommended?:

1 - <settings pass="windowsPE">

2 - <settings pass="generalize">

3 - <settings pass="oobeSystem">

Thanks and Regards

post-23163-0-59893800-1320510113_thumb.g

Link to comment
Share on other sites

It's a lovely day today with calm and sunny weather LOL

Have a nice week-end! :)

After deleting the ei.cfg file, you can remove all catalog files inside your Windows 7 AIO DVD, because they are outdated.

And if you need you can create new catalog files with WSIM, but only on a 32-bit computer:

http://www.msfn.org/board/topic/152947-problem-with-sim/page__view__findpost__p__973982

Cheers

Link to comment
Share on other sites

@myselfidem

Can you give Legolash2o any further guidance for anything else he can do to improve/fix W7T in regards to unattended operations?

Cheers and Regards

Thanks!

The best way is to read the useful documentation provided by Microsoft:

http://www.microsoft...ls.aspx?id=2458

And to ask Legolash2o to add some new options if we need:

http://www.wincert.net/forum/index.php?/topic/8591-unattended-merged/

... or use the import button with XML Creator, and use our Autounattend.xml file already customized!

We can also find more help about Autounattend.xml file here:

http://www.msfn.org/...seven-xml-here/

Cheers

Edited by myselfidem
Link to comment
Share on other sites

  • 2 weeks later...

About Autounattend.xml file for Windows 7 AIO (x86 and amd64).

We can have only ONE dialog box asking the OS to install during the silent installation.

With the example below, all the keys must be already integrated.

Testing on a Virtual Machine, take care with the partition size (C:\).

And If you install on a HDD, adapt the partition size to your needs!

You can add more values to suit your needs inside your Autounattend.xml file customized.

The name used with this Autounattend.xml file is fictitious!

Note: you can adjust partition Size accordingly; this example uses 10 gigabytes (C:\).

Autounattend.xml


<?xml version="1.0" encoding="utf-8"?>
<unattend xmlns="urn:schemas-microsoft-com:unattend">
<settings pass="windowsPE">
<component name="Microsoft-Windows-International-Core-WinPE" processorArchitecture="x86" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<SetupUILanguage>
<UILanguage>fr-FR</UILanguage>
</SetupUILanguage>
<InputLocale>100c:0000100c</InputLocale>
<SystemLocale>fr-CH</SystemLocale>
<UILanguage>fr-FR</UILanguage>
<UserLocale>fr-CH</UserLocale>
</component>
<component name="Microsoft-Windows-International-Core-WinPE" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<SetupUILanguage>
<UILanguage>fr-FR</UILanguage>
</SetupUILanguage>
<InputLocale>100c:0000100c</InputLocale>
<SystemLocale>fr-CH</SystemLocale>
<UILanguage>fr-FR</UILanguage>
<UserLocale>fr-CH</UserLocale>
</component>
<component name="Microsoft-Windows-Setup" processorArchitecture="x86" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<Diagnostics>
<OptIn>false</OptIn>
</Diagnostics>
<DiskConfiguration>
<WillShowUI>OnError</WillShowUI>
<Disk wcm:action="add">
<DiskID>0</DiskID>
<WillWipeDisk>true</WillWipeDisk>
<CreatePartitions>
<CreatePartition wcm:action="add">
<Order>1</Order>
<Type>Primary</Type>
<Size>100</Size>
</CreatePartition>
<CreatePartition wcm:action="add">
<Order>2</Order>
<Size>10000</Size> // WARN: adapt the size when your test is with a Virtual Machine or on a HDD
<Type>Primary</Type>
</CreatePartition>
<CreatePartition wcm:action="add">
<Order>3</Order>
<Type>Primary</Type>
<Extend>true</Extend>
</CreatePartition>
</CreatePartitions>
<ModifyPartitions>
<ModifyPartition wcm:action="add">
<Order>1</Order>
<PartitionID>1</PartitionID>
<Label>System</Label>
<Format>NTFS</Format>
<Active>true</Active>
</ModifyPartition>
<ModifyPartition wcm:action="add">
<Order>2</Order>
<PartitionID>2</PartitionID>
<Letter>C</Letter>
<Label>SEVEN</Label>
<Format>NTFS</Format>
</ModifyPartition>
<ModifyPartition wcm:action="add">
<Order>3</Order>
<Format>NTFS</Format>
<PartitionID>3</PartitionID>
<Label>DATA</Label>
<Letter>D</Letter>
</ModifyPartition>
</ModifyPartitions>
</Disk>
</DiskConfiguration>
<Display>
<ColorDepth>32</ColorDepth>
<HorizontalResolution>1280</HorizontalResolution>
<VerticalResolution>1024</VerticalResolution>
<RefreshRate>60</RefreshRate>
</Display>
<DynamicUpdate>
<Enable>false</Enable>
<WillShowUI>Never</WillShowUI>
</DynamicUpdate>
<ImageInstall>
<OSImage>
<InstallTo>
<DiskID>0</DiskID>
<PartitionID>2</PartitionID>
</InstallTo>
<WillShowUI>OnError</WillShowUI>
<InstallToAvailablePartition>false</InstallToAvailablePartition>
</OSImage>
</ImageInstall>
<UserData>
<AcceptEula>true</AcceptEula>
<FullName>Jean Dupont</FullName>
<Organization>particulier</Organization>
</UserData>
<EnableFirewall>true</EnableFirewall>
</component>
<component name="Microsoft-Windows-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<Diagnostics>
<OptIn>false</OptIn>
</Diagnostics>
<DiskConfiguration>
<WillShowUI>OnError</WillShowUI>
<Disk wcm:action="add">
<DiskID>0</DiskID>
<WillWipeDisk>true</WillWipeDisk>
<CreatePartitions>
<CreatePartition wcm:action="add">
<Order>1</Order>
<Type>Primary</Type>
<Size>100</Size>
</CreatePartition>
<CreatePartition wcm:action="add">
<Order>2</Order>
<Size>10000</Size>
<Type>Primary</Type>
</CreatePartition>
<CreatePartition wcm:action="add">
<Order>3</Order>
<Type>Primary</Type>
<Extend>true</Extend>
</CreatePartition>
</CreatePartitions>
<ModifyPartitions>
<ModifyPartition wcm:action="add">
<Order>1</Order>
<PartitionID>1</PartitionID>
<Label>System</Label>
<Format>NTFS</Format>
<Active>true</Active>
</ModifyPartition>
<ModifyPartition wcm:action="add">
<Order>2</Order>
<PartitionID>2</PartitionID>
<Letter>C</Letter>
<Label>SEVEN</Label>
<Format>NTFS</Format>
</ModifyPartition>
<ModifyPartition wcm:action="add">
<Order>3</Order>
<Format>NTFS</Format>
<PartitionID>3</PartitionID>
<Label>DATA</Label>
<Letter>D</Letter>
</ModifyPartition>
</ModifyPartitions>
</Disk>
</DiskConfiguration>
<Display>
<ColorDepth>32</ColorDepth>
<HorizontalResolution>1280</HorizontalResolution>
<VerticalResolution>1024</VerticalResolution>
<RefreshRate>60</RefreshRate>
</Display>
<DynamicUpdate>
<Enable>false</Enable>
<WillShowUI>Never</WillShowUI>
</DynamicUpdate>
<ImageInstall>
<OSImage>
<InstallTo>
<DiskID>0</DiskID>
<PartitionID>2</PartitionID>
</InstallTo>
<WillShowUI>OnError</WillShowUI>
<InstallToAvailablePartition>false</InstallToAvailablePartition>
</OSImage>
</ImageInstall>
<UserData>
<AcceptEula>true</AcceptEula>
<FullName>Jean Dupont</FullName>
<Organization>particulier</Organization>
</UserData>
<EnableFirewall>true</EnableFirewall>
</component>
</settings>
<settings pass="specialize">
<component name="Microsoft-Windows-Security-SPP-UX" processorArchitecture="x86" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<SkipAutoActivation>true</SkipAutoActivation>
</component>
<component name="Microsoft-Windows-Security-SPP-UX" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<SkipAutoActivation>true</SkipAutoActivation>
</component>
<component name="Microsoft-Windows-Shell-Setup" processorArchitecture="x86" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<ComputerName>Se7en</ComputerName>
<TimeZone>W. Europe Standard Time</TimeZone>
</component>
<component name="Microsoft-Windows-Shell-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<ComputerName>Se7en</ComputerName>
<TimeZone>W. Europe Standard Time</TimeZone>
</component>
<component name="Microsoft-Windows-IE-InternetExplorer" processorArchitecture="x86" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<DisableOOBAccelerators>true</DisableOOBAccelerators>
<DisableFirstRunWizard>true</DisableFirstRunWizard>
<EnableLinksBar>false</EnableLinksBar>
<FilterLevel>High</FilterLevel>
<Home_Page>http://www.google.ch</Home_Page>
<BlockPopups>yes</BlockPopups>
<SuggestedSitesEnabled>false</SuggestedSitesEnabled>
<PlaySound>True</PlaySound>
<ShowInformationBar>true</ShowInformationBar>
<ShowMenuBar>true</ShowMenuBar>
</component>
<component name="Microsoft-Windows-IE-InternetExplorer" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<DisableOOBAccelerators>true</DisableOOBAccelerators>
<DisableFirstRunWizard>true</DisableFirstRunWizard>
<EnableLinksBar>false</EnableLinksBar>
<FilterLevel>Medium</FilterLevel>
<Home_Page>http://www.google.ch</Home_Page>
<BlockPopups>yes</BlockPopups>
<SuggestedSitesEnabled>false</SuggestedSitesEnabled>
<PlaySound>True</PlaySound>
<ShowInformationBar>true</ShowInformationBar>
<ShowMenuBar>true</ShowMenuBar>
</component>
</settings>
<settings pass="oobeSystem">
<component name="Microsoft-Windows-International-Core" processorArchitecture="x86" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<InputLocale>100c:0000100c</InputLocale>
<UILanguage>fr-FR</UILanguage>
<UserLocale>fr-CH</UserLocale>
</component>
<component name="Microsoft-Windows-International-Core" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<InputLocale>100c:0000100c</InputLocale>
<UILanguage>fr-FR</UILanguage>
<UserLocale>fr-CH</UserLocale>
</component>
<component name="Microsoft-Windows-Shell-Setup" processorArchitecture="x86" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<TimeZone>W. Europe Standard Time</TimeZone>
<RegisteredOwner>Jean Dupont</RegisteredOwner>
<Display>
<ColorDepth>32</ColorDepth>
<HorizontalResolution>1280</HorizontalResolution>
<VerticalResolution>1024</VerticalResolution>
<RefreshRate>60</RefreshRate>
</Display>
<OOBE>
<HideEULAPage>true</HideEULAPage>
<HideWirelessSetupInOOBE>true</HideWirelessSetupInOOBE>
<NetworkLocation>Home</NetworkLocation>
<ProtectYourPC>1</ProtectYourPC>
</OOBE>
<AutoLogon>
<Password>
<Value>qwertzuiop</Value>
<PlainText>true</PlainText>
</Password>
<Enabled>true</Enabled>
<LogonCount>9999999</LogonCount>
<Username>Jean</Username>
</AutoLogon>
<UserAccounts>
<LocalAccounts>
<LocalAccount wcm:action="add">
<Password>
<Value>qwertzuiop</Value>
<PlainText>true</PlainText>
</Password>
<DisplayName>Jean</DisplayName>
<Name>Jean</Name>
<Group>Administrators</Group>
</LocalAccount>
</LocalAccounts>
</UserAccounts>
</component>
<component name="Microsoft-Windows-Shell-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="[url="http://schemas.microsoft.com/WMIConfig/2002/State"]http://schemas.microsoft.com/WMIConfig/2002/State[/url]" xmlns:xsi="[url="http://www.w3.org/2001/XMLSchema-instance"]http://www.w3.org/2001/XMLSchema-instance[/url]">
<TimeZone>W. Europe Standard Time</TimeZone>
<RegisteredOwner>Jean Dupont</RegisteredOwner>
<Display>
<ColorDepth>32</ColorDepth>
<HorizontalResolution>1280</HorizontalResolution>
<VerticalResolution>1024</VerticalResolution>
<RefreshRate>60</RefreshRate>
</Display>
<OOBE>
<HideEULAPage>true</HideEULAPage>
<HideWirelessSetupInOOBE>true</HideWirelessSetupInOOBE>
<NetworkLocation>Home</NetworkLocation>
<ProtectYourPC>1</ProtectYourPC>
</OOBE>
<AutoLogon>
<Password>
<Value>qwertzuiop</Value>
<PlainText>true</PlainText>
</Password>
<Enabled>true</Enabled>
<LogonCount>9999999</LogonCount>
<Username>Jean</Username>
</AutoLogon>
<UserAccounts>
<LocalAccounts>
<LocalAccount wcm:action="add">
<Password>
<Value>qwertzuiop</Value>
<PlainText>true</PlainText>
</Password>
<DisplayName>Jean</DisplayName>
<Name>Jean</Name>
<Group>Administrators</Group>
</LocalAccount>
</LocalAccounts>
</UserAccounts>
</component>
</settings>
</unattend>
<!--Customized by myselfidem. For Windows 7 AIO (x86 and amd64). All keys must be integrated first. Only one dialog box will appear to choose the OS to install-->

Check carefully the values you have added or changed, and adapt the values to your needs.

WARNING: The full Disk will be wiped and all data erased!!

Edited by myselfidem
Link to comment
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

 Share

×
×
  • Create New...
