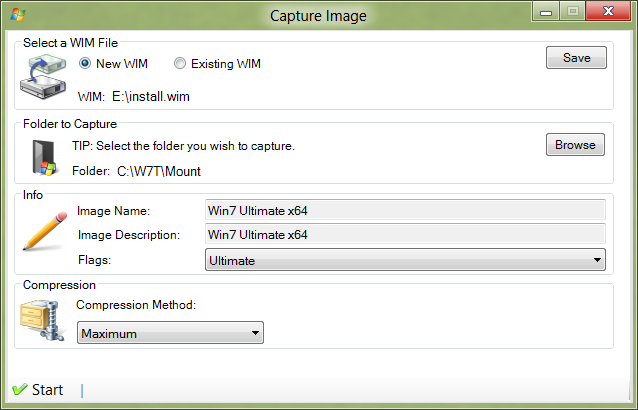

Legolash2o Posted March 30, 2012 Share Posted March 30, 2012 This tool lets you capture images which then get added to a new *.wim or added to an existing one.Step 1: Select your optionFirstly you need to figure out if you want to make a completely new wim or add to an existing oneWarning:If you select the 'New WIM' option and select an image that already exists then it will be completely replaced.Step 2: Select WIM locationDepending on the option you chose in step 1 then click 'Browse' and select your image you wish to add to OR press 'Save' and select where you wish to save the new image.Step 3: Select folderSelect the folder you wish to capture inside an *.wim file.Step 4: InfoW7T will try and fill in the 'Name', 'Description' and 'Flags'.Note: If you're adding to an existing image then your image name must be unique, it another image has the same 'Name' then it wont work!Option: CompressionIts best to leave this at the default setting 'Maximum', which ensures a smaller *.wim file size.Once the above is done, click start Quote Link to comment Share on other sites More sharing options...
55ttt Posted January 11, 2014 Share Posted January 11, 2014 Does this utilize Sysprep & DISM?Can this be used to capture an existing install / System Image?Thanks Quote Link to comment Share on other sites More sharing options...
Legolash2o Posted January 11, 2014 Author Share Posted January 11, 2014 It uses imagex. If you want to capture and existing install, I dont think you can do it with the current install unless you boot from another partition/OS option. And if you want to install it on other machines, you will have to sysprep it first. Quote Link to comment Share on other sites More sharing options...
55ttt Posted January 11, 2014 Share Posted January 11, 2014 On 1/11/2014 at 6:31 PM, Legolash2o said: It uses imagex. If you want to capture and existing install, I dont think you can do it with the current install unless you boot from another partition/OS option. And if you want to install it on other machines, you will have to sysprep it first. Thanks, These pages got me thinking about the potential of this tool (high hopes): http://www.wincert.net/forum/index.php?/topic/7384-video-windows-7-aikopk-deployment-101-updated/ http://mythoughtsonit.com/2013/02/dism-exe-replaces-imagex-exe/ Quote Link to comment Share on other sites More sharing options...
Attended Posted February 9, 2015 Share Posted February 9, 2015 When I use the "Capture" option in the latest wtk edition, I see an option that isn't shown in your example sshot, the /norpfix checkbox. It's by default set on "checked" and when I read about imagex capturing it should be by default set on unchecked, imagex uses by default the rpfix instead of the norpfix. Am i right? If i capture a mounted wim and i want all things to go smoothly i should capture with the /norpfix checkbox unchecked? Quote Link to comment Share on other sites More sharing options...
latino Posted February 27, 2015 Share Posted February 27, 2015 Why I can´t cleanup de Captured Image...?? Why you deleted the option...? Quote Link to comment Share on other sites More sharing options...
Legolash2o Posted March 1, 2015 Author Share Posted March 1, 2015 I thought I read it had to be enabled by default so I've now turned it off. I've also updated the GUI to have a help button next to it showing more information about it. Quote Link to comment Share on other sites More sharing options...
Bla_Ck Posted May 29, 2016 Share Posted May 29, 2016 Does This Support Capturing Attached VHD ? Cause i have an modified win 7 vhd & attached it (so its a drive now named F: ) Does wintoolkit capture option supports capturing an attached vhd ( Drive ) ???? Quote Link to comment Share on other sites More sharing options...
mohamed1222 Posted April 27, 2022 Share Posted April 27, 2022 don Quote Link to comment Share on other sites More sharing options...
